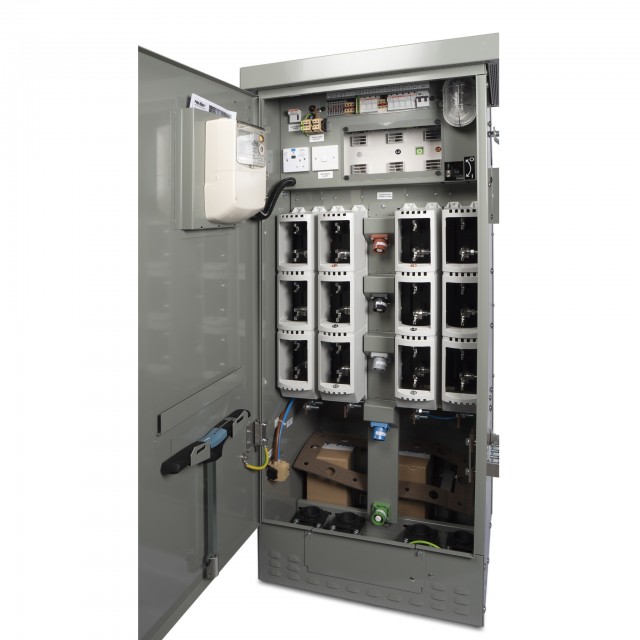

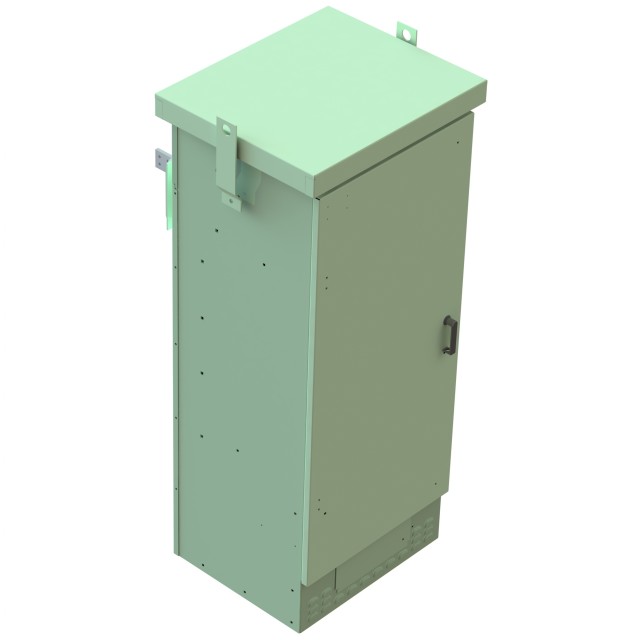

4 Way 800A GEN Panel

800 A 4 Way Distribution Panel with Generator Connections


Generator connections
Accepts gU, J type, 82 or 92 mm fuse links
IP 44

3 Phase + N + E
Fused Cable Boxes and fuseboards in cabinets shall be suitable for transformer or pole mounting as required.
Rated operational voltage Ue: 400/230V
Rated operational current Ie: 800A
Rated frequency: 50Hz
Short Circuit Level 35.5kA rms for 3 second
ENA TS 37-2 Issue 5: Public Electricity Network Distribution Assemblies
BS EN 60439-5: ‘Low voltage switchgear and control gear assemblies. Particular requirements for assemblies for power distribution in public networks’.

Height (mm) 1702
Width (mm) 728
Depth (mm) 689
Weight (kg) 240
